Heriton Canberra / Aluminium Cladding
Two stocked aluminium profiles for Canberra projects: a flat shiplap face and a sculpted castellated face, both planned as supply or supply-and-install packages.
The material story
Quiet enough for facade bands. Strong enough for statement walls.

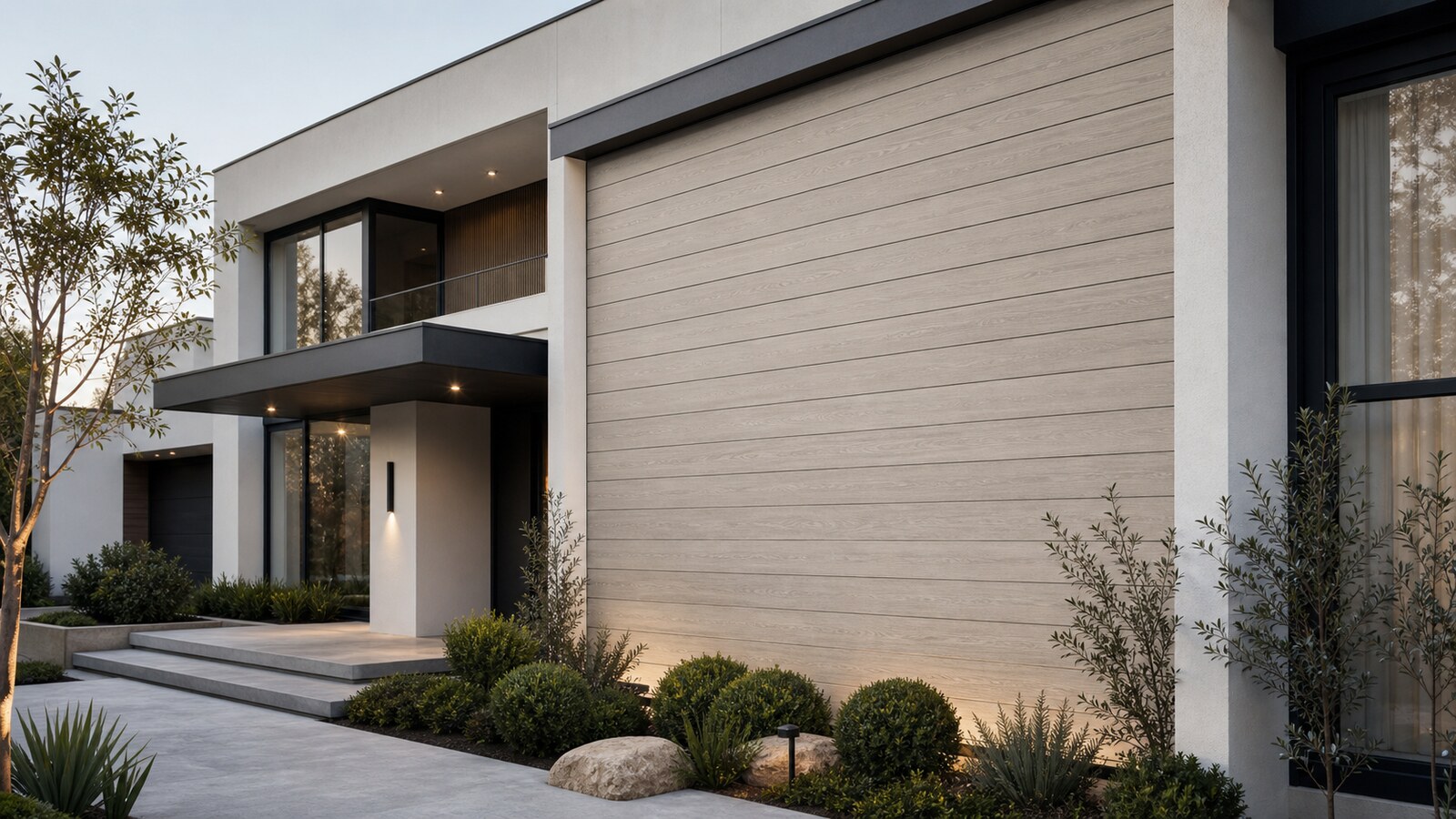

Profile 01
A flatter overlapping face for calm wall surfaces, long horizontal or vertical runs, and projects where the cladding should read as a quiet architectural finish.

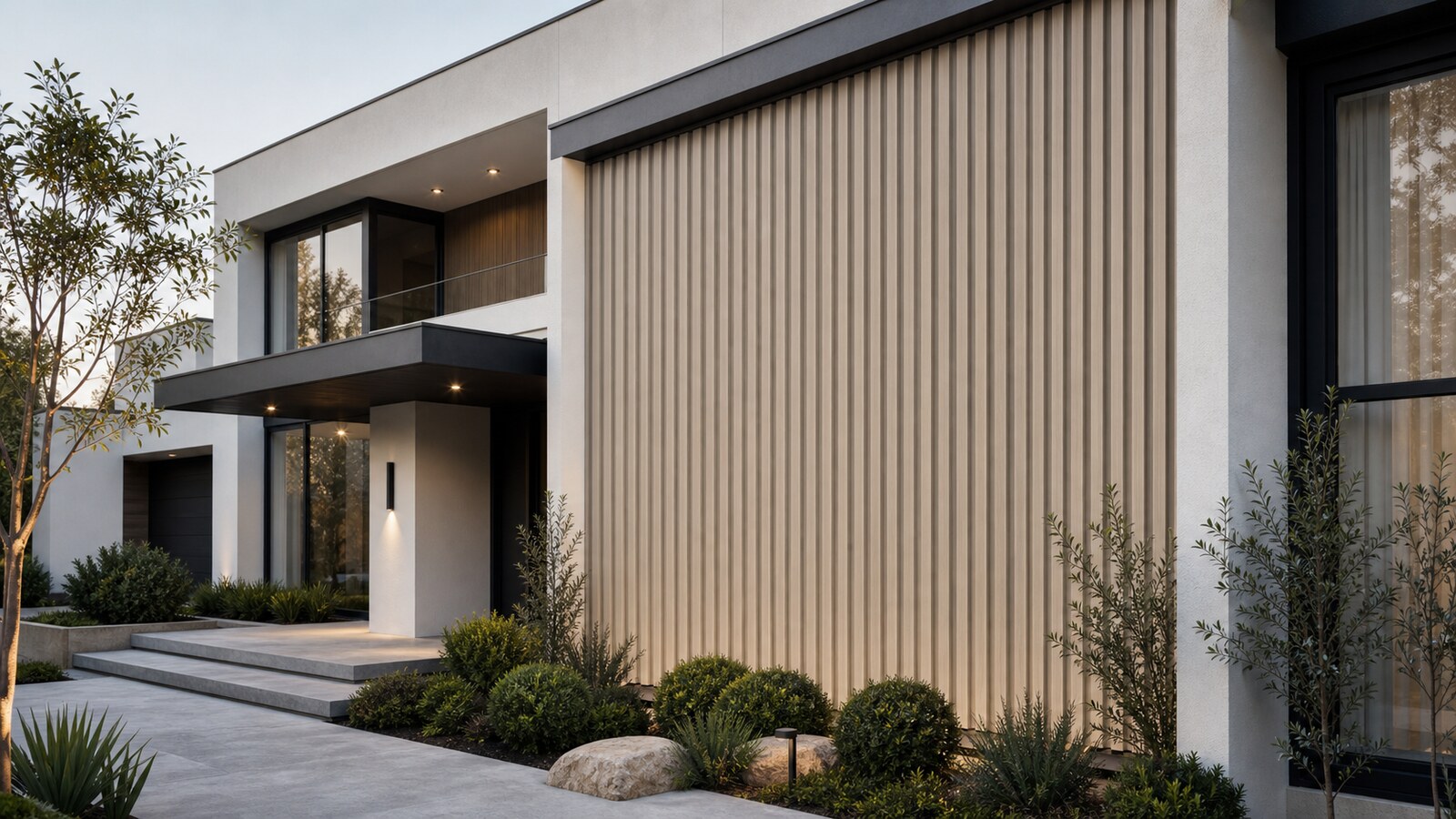

Profile 02
A more dimensional face with shadow lines, useful when the wall itself should become the feature instead of sitting quietly in the background.
System pieces
The Heriton material and installation sheets show the trims, starters, corners and joiners used to finish vertical cladding runs cleanly.
56 x 16.3 x 6500mm starter profile, used to locate the first vertical cladding board at the side of the wall or structure.
70.5 x 6.2 x 6500mm trim for broad finishing and edge control where the wall line needs a clean stop.
70.5 x 18.5 x 6500mm finisher profile used at top, bottom and finishing sides to conceal exposed board edges.
43.2 x 17.3 x 6500mm narrower finishing trim for tighter edge details.
38 x 38 x 6500mm corner profile for compact internal or external corner finishing.
50 x 50 x 6500mm universal two-piece corner profile to conceal internal and external corner edges.
75 x 17 x 6500mm two-piece joiner for board-to-board joints and wider control-joint cover details.
40 x 18 x 6500mm narrower two-piece joiner; installation notes call for a 5mm gap at joiner legs.
Starter profile goes in first. Two-piece base trims, including finisher, corner and joiner profiles, are fitted before the cladding boards are clicked into their cover pieces.
Horizontal and vertical control joints can be formed with Heriton two-piece joiner profiles; the guide also shows 5mm gaps and drainage holes where required.
Finish direction
Colour should be confirmed with samples before order, especially when matching nearby decking, fencing, render, or window frames.
Original material sheet

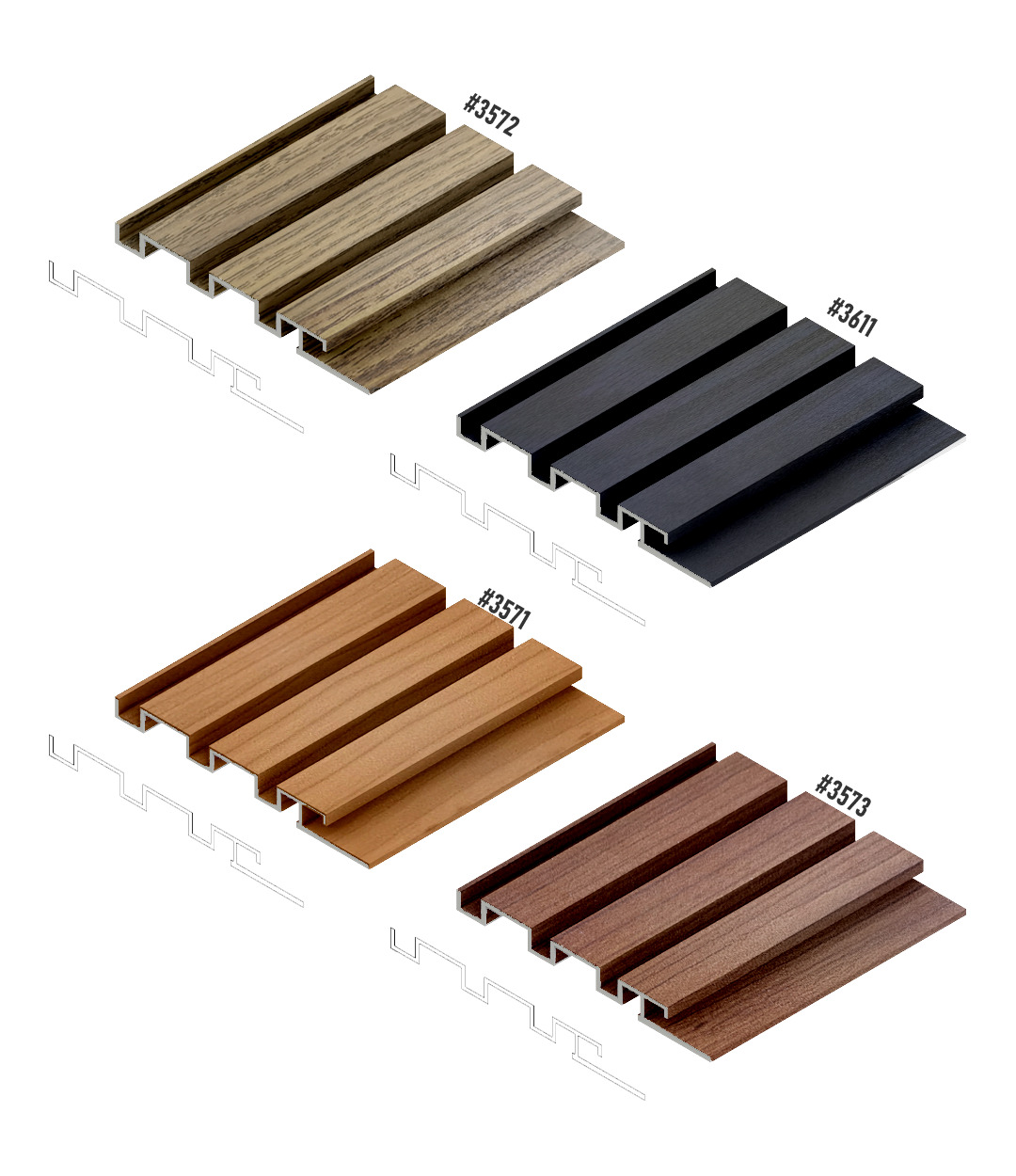

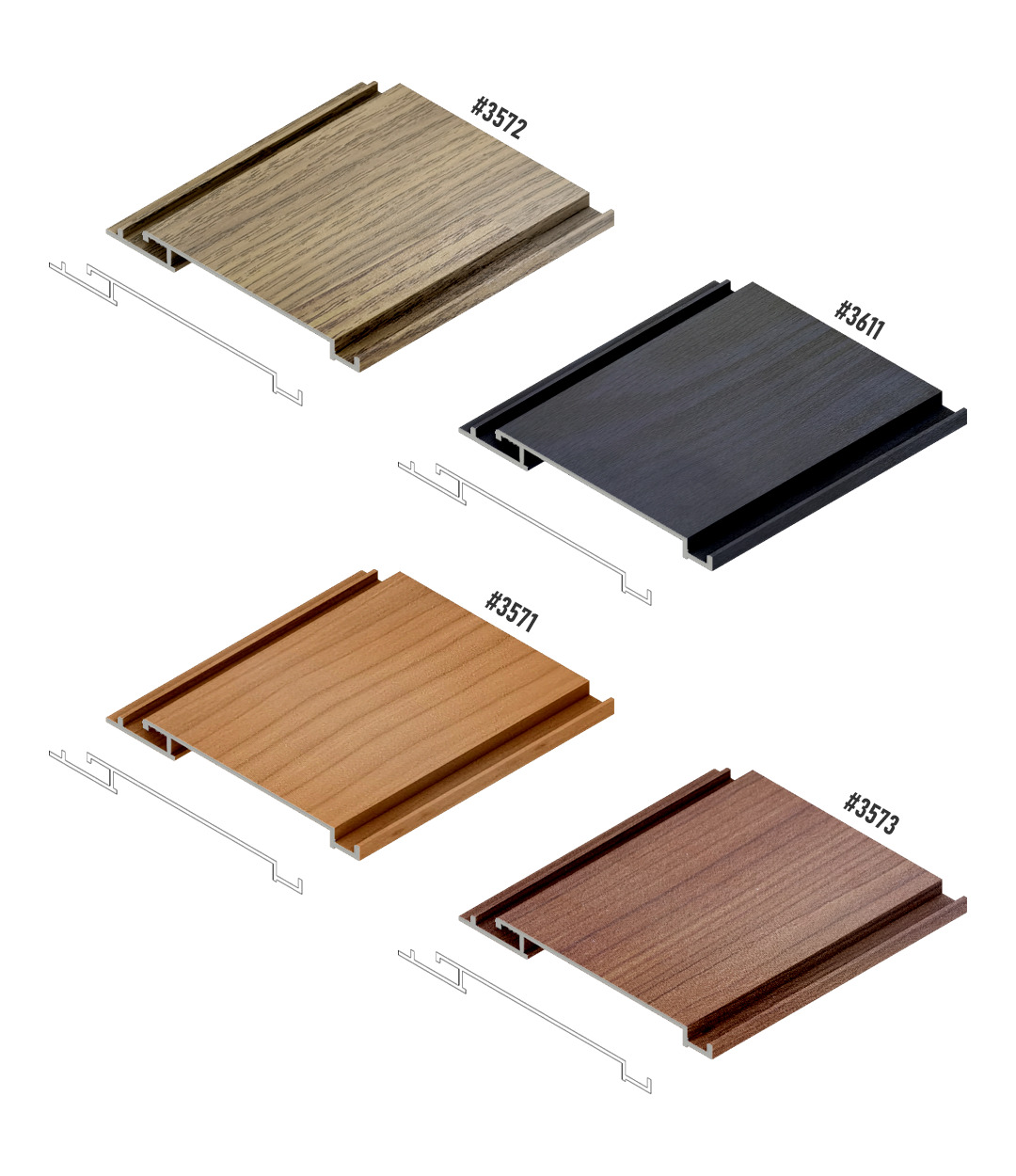

The original shiplap and castellated profile sheets are kept here for colour and profile reference.
